M10 ARKO silicate blocks are used - for the walls of self-carrying buildings for unprotected surfaces, between the partitions in the room

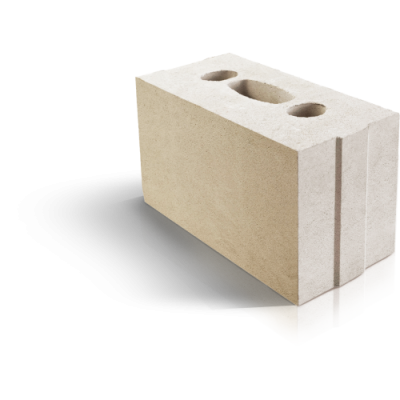

M12 ARKO silicate blocks are used - for partition between rooms and other rooms and self-carrying building walls.

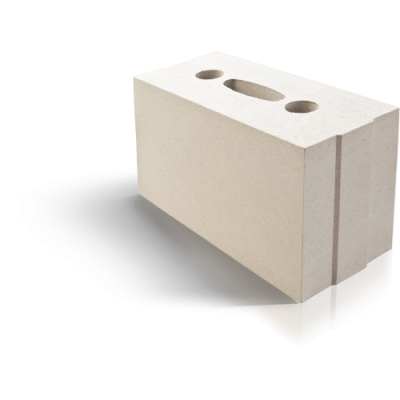

M15 ARKO silicate blocks are used - for the walls of single-storey outbuildings, one-storey buildings with attic walls and self-carrying building walls
M18 ARKO silicate blocks are used - for walls of two-three-storey private houses and cottages, industrial buildings and multi-storey residential buildings
M12 ARKO silicate blocks are used - for partition between rooms and other rooms and self-carrying building walls.
M15 ARKO silicate blocks are used - for the walls of single-storey outbuildings, one-storey buildings with attic walls and self-carrying building walls
M18 ARKO silicate blocks are used - for walls of two-three-storey private houses and cottages, industrial buildings and multi-storey residential buildings

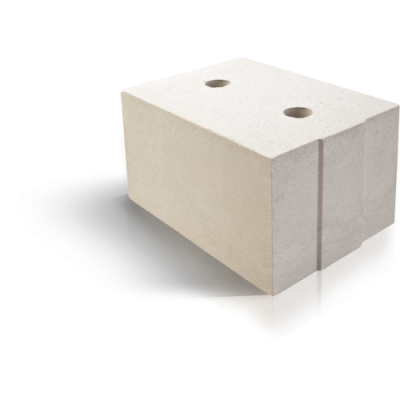

M24 ARKO silicate blocks are used - walls of multi-storey residential buildings, walls of industrial buildings, internal load-bearing walls of single-storey buildings and walls between apartments and stairwells.
Technical characteristics:
1. ARKO M10 - 340x100x198 mm - 9.9 kg/pc.
2. ARKO M12 - 340x120x198 mm - 12.3 kg/pc.
3. ARKO M15 - 340x150x198 mm - 15.9 kg/pc.
4. ARKO M18 - 340x180x198 mm - 16.9 kg/pc.
5. ARKO M24 - 340x240x198 mm - 22.78 kg/pc.
Volume on the pallet:
M10 - 105 pcs - 0.706 m3
M12 - 90 pcs - 0.727 m3
M15 - 75 pcs - 0.757 m3
M18 - 60 pcs - 0.727 m3
M24 - 45 pcs - 0.727 m3
Density:
1310 ÷ 1500 kg/m3 (M10, M12, M24)
1410 ÷ 1600 kg/m3 (M15)
1210 ÷ 1400 kg/m3 (M18)
Average compressive strength :
7,5÷18.66 N/mm2 (M10)
7,3 ÷ 17,5 N/mm2 (M12)
10,1 ÷ 17,5 N/mm2 (M15)
10,6 ÷ 17,5 N/mm2 (M18)
11,4 ÷ 17,5 N/mm2 (M24)
Thermal conductivity factor λ 10: 0.68 W/(m·K)
Reaction to fire: A1
The color tones on the screen are reproduced electronically. They may differ from the actual color tone because our color perception is affected by the surface of the material, glare, lighting, and other factors. To accurately determine a color shade, we recommend that you use real color shade catalogs, always be confident in your choice, and use the color shade catalogs in an environment or conditions similar to those for which you choose a color.
The image of the product is informative. Specifications may vary depending on configuration and size. Fittings and their location may vary.
